Relationships

Relationships are defined as fields. One-to-one, one-to-many and many-to-many relationships can be defined with BelongsTo and HasMany fields.

Supported relationship types

Relationship navigations from EF Core are used to load related entities. Consequently, relationships without any navigation are not supported. Unidirectional relationship support is limited to its outgoing side.

Relationship defined by EF Core	supported
Required one-to-one	yes
Optional one-to-one	yes
Required one-to-one with primary key to primary key	yes
Required one-to-one with shadow foreign key	yes
Optional one-to-one with shadow foreign key	yes
One-to-one without navigation to principal	yes
One-to-one without navigation to principal and with shadow foreign key	yes
One-to-one without navigation to dependent	yes
One-to-one with no navigations	no
One-to-one with alternate key	yes
One-to-one with composite foreign key	yes
Required one-to-one without cascade delete	yes
Self-referencing one-to-one	yes
Required one-to-many	yes
Optional one-to-many	yes
Required one-to-many with shadow foreign key	yes
Optional one-to-many with shadow foreign key	yes
One-to-many without navigation to principal	yes
One-to-many without navigation to principal and with shadow foreign key	yes
One-to-many without navigation to dependents	yes
One-to-many with no navigations	no
One-to-many with alternate key	yes
One-to-many with composite foreign key	yes
Required one-to-many without cascade delete	yes
Self-referencing one-to-many	yes
Basic many-to-many	yes
Many-to-many with named join table	yes
Many-to-many with join table foreign key names	yes
Many-to-many with class for join entity	yes
Many-to-many with navigations to join entity	no
Many-to-many with navigations to and from join entity	no
Many-to-many with navigations and changed foreign keys	no
Unidirectional many-to-many	yes
Many-to-many and join table with payload	yes1
Custom shared-type entity type as a join entity	no
Many-to-many with alternate keys	yes
Many-to-many and join table with separate primary key	yes
Many-to-many without cascading delete	yes
Self-referencing many-to-many	yes
Symmetrical self-referencing many-to-many	yes2
Direct use of join table	no1

¹ The join table needs a separate primary key to show additional data or relationships. We recommend the Many-to-many and join table with separate primary key relationship to show additional data or relationships.

² To achieve the symmetry the relationship has to be added from both sides manually.

Configuring relationships

To configure a relationship in Centias only its cardinality is relevant. The following sections provide examples for the three cardinalities.

All examples are assuming a bidirectional relationship, where all involved entities have a navigation to their associated entities. If the relationship is unidirectional, it can only be displayed by the outgoing entity. For example in a relationship A->B only A can display its relationship to B.

One-to-one

A one-to-one relationship is used to model situations where one entity can be associated only one instances of another entity. For example, in a database, an order have a related invoice and an invoice has one order.

Implementation example

In this example, an order can have an invoice and an invoice must have an order.

Entities

Our example model class Order contains the property Invoice, which describes one side of the one-to-one relationship.

public class Order {

    [Key]
    public int Id { get; set; }

    public Invoice? Invoice { get; set; }
}

Our Invoice model class in return contains the property Order with the OrderId as foreign key, which determines the other side of the one-to-one relationship.

public class Invoice {

    [Key]
    public int Id { get; set; }

    [Required]
    public Order Order { get; set; }
    public int OrderId { get; set; }
}

Resources

In our order resource the one-to-one relationship with invoice entities is defined with BelongsTo<TEntitiy, TRelated>. To check your setup see if the following statement holds:

A TEntity belongs to TRelated.

public class OrderResource : Resource<Order, ApplicationDbContext, int>
{
    public OrderResource(ApplicationDbContext context): base(context) {}

    public override IList<IResoureFieldBuilder> Fields()
    {
        return
        [
            BelongsTo.Make<Order, Invoice>("Invoice", nameof(Order.Invoice))
        ];
    }
}

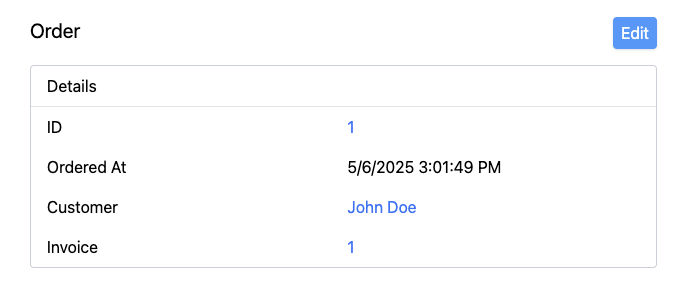

As a result each order contains a reference to its related invoice.

In the invoice resource the relationship to an order is defined with BelongsTo<TEntitiy, TRelated>. You can verify your setup with the following statement:

TEntity belongs to TRelated.

public class InvoiceResource : Resource<Employee, ApplicationDbContext, int>
{
    public EmployeeResource(ApplicationDbContext context): base(context) {}

    public override IList<IResoureFieldBuilder> Fields()
    {
        return
        [
            BelongsTo<Invoice, Order>.Make("Order", nameof(Invoice.Order))
        ];
    }
}

As a result each invoice contains a reference to its related order.

One-to-many

A one-to-many relationship is used to model situations where one entity can be associated with multiple instances of another entity. For example, in a database, a team may have many employees, but each employee is associated with only one team.

Implementation example

In our example, an employee is part of one team and one team can have many employees.

Entities

Our example model class Employee contains a property Team to indicate which team an employee is a member of.

public class Employee
{
    [Key]
    public int Id { get; set; }

    [Required]
    public string Name { get; set; }

    [Required]
    public Team Team { get; set; }
}

A Team has a property Members, which contains a list of employees.

public class Team
{
    [Key]
    public int Id { get; set; }

    [Required]
    public string Name { get; set; }

    public ICollection<Employee> Members { get; set; } = [];
}

Resources

In our team resource the one-to-many relationship with employee entities is defined with a HasMany<TEntitiy, TRelated> field. Your setup is correct if the following statement holds:

A TEntity has many TRelated.

public class TeamResource : Resource<Team, CompanyContext, int>
{
    public TeamResource(CompanyContext context) : base(context) {}

    public override IList<IResoureFieldBuilder> Fields()
    {
        return
        [
            TextField.Make("Name", nameof(Team.Name)).AsDisplayName(),
            HasMany<Team, Employee>.Make("Members", nameof(Team.Members))
        ];
    }
}

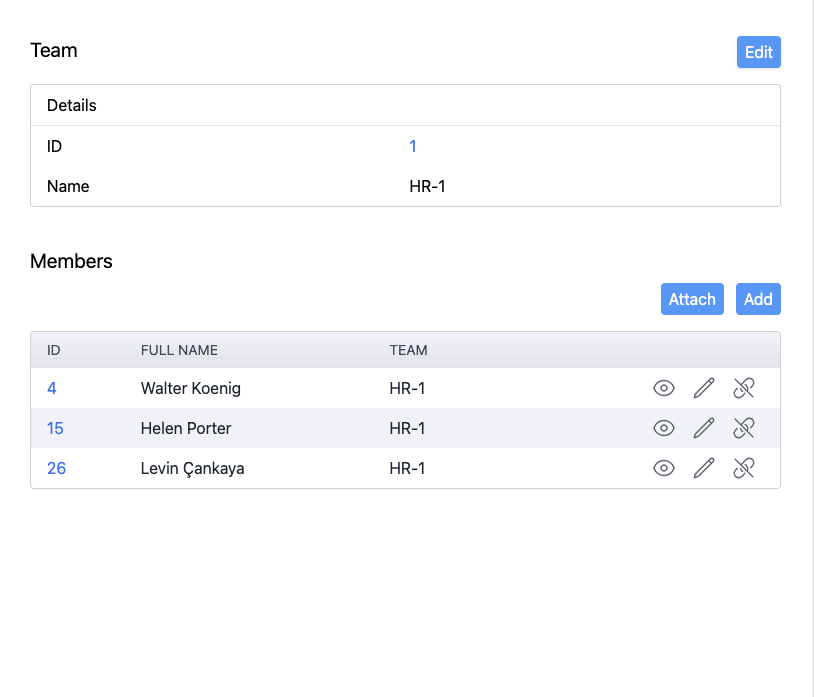

As a result, each team contains a list of associated employees.

In the employee resource the relationship to a team is defined with a BelongsTo<TEntitiy, TRelated> field. You can verify your setup with the following statement:

TEntity belongs to TRelated.

public class EmployeeResource : Resource<Employee, CompanyContext, int>
{
    public EmployeeResource(CompanyContext context) : base(context) {}

    public override IList<IResoureFieldBuilder> Fields()
    {
        return
        [
            TextField.Make("Name", nameof(Employee.Name)),
            BelongsTo<Employee, Team>.Make("Team", nameof(Employee.Team))
        ];
    }
}

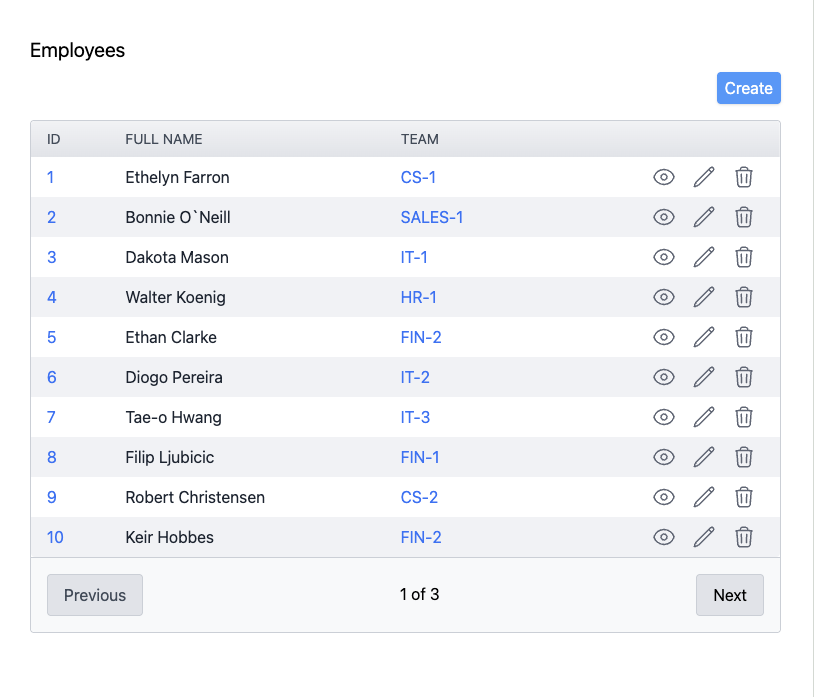

Now each Employee contains a reference to the associated Team.

Many-to-many

A many-to-many relationship is used to model situations where multiple entities can be associated with multiple instances of another entity. For example, in a database, a product may be included in multiple product bundles, and a product bundle may include multiple products.

Implementation example

In this example, a product can be contained in multiple product bundles and one product bundle can include many products.

Entities

Our example model class Product contains the property Bundles, which describes one side of the many-to-many relationship.

public class Product
{
    [Key]
    public int Id { get; set; }

    public ICollection<ProductBundles> Bundles { get; set; } = [];
}

Our ProductBundle model class in return contains the property Products, which determines the other side of the many-to-many relationship.

public class ProductBundle
{
    [Key]
    public int Id { get; set; }

    [Required]
    public string Name { get; set; }

    public ICollection<Product> Products { get; set; } = [];
}

Resources

In our product resource we define the many-to-many relationship through a HasMany<TEntity, TRelated> field. To check our relationship setup, see if the following statement holds:

A TEntity has many TRelated.

public class ProductResource : Resource<Product, ApplicationDbContext, int>
{
    public ProductResource(ApplicationDbContext context) : base(context) {}

    public override IList<IResoureFieldBuilder> Fields()
    {
        return
        [
            HasMany<Product, ProductBundle>.Make("Bundles", nameof(Product.Bundles)),
        ];
    }
}

With this configuration, each product bundle contains a list of its associated products.

In our product bundle resource the relationship to products is defined with a HasMany<TEntitiy, TRelated> field. You can verify your setup with the following statement:

TEntity has many TRelated.

public class ProductBundleResource : Resource<ProductBundle, ApplicationDbContext, int>
{
    public ProductBundleResource(ApplicationDbContext context) : base(context) {}

    public override IList<IResoureFieldBuilder> Fields()
    {
        return
        [
            HasMany<ProductBundle, Product>.Make("Products", nameof(ProductBundle.Products))
        ];
    }
}

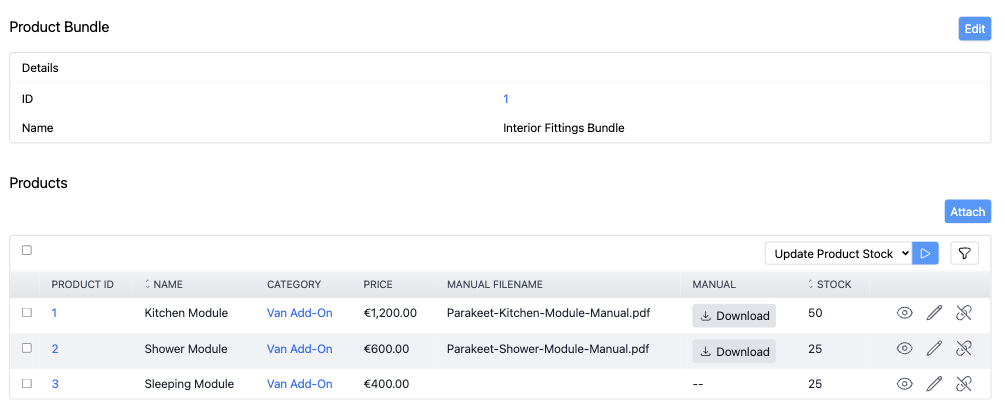

As a result, each product bundle displays its associated products.
